Watch TV outside where you want while getting protection from the weather, moisture, mildew, and rot all while saving the expense and trouble of designing around your much desired outdoor TV.

  • Proven 10 year warranty. TV lift contains stainless steel screws.
  • Exterior built out of kiln dried Ipe Brazillian hardwood with-stands the lightest to harshest outdoor elements.
  • See below options tag to learn more about adding the optional 360 swivel, sound bar shelf and other.
  • Standard sized cabinets fit 55 65 75 inch TV’s. Customize sizes also available.
  • Heavy duty stainless steel swivel caster wheels with durable locks. Cheap wheels simply do not cut it outside.
  • Very durable fabricated & specialized aluminum top. Select from black, white or gray colors.
  • Get what you pay for concept applies here with Cabinet Tronix’s 20 years of experience. Simply, not all outdoor TV lift cabinets are the same.

Customer Reviews

For immediate assistance call 619.422.2784

Hidden TV Cabinet Leader for 20+ Years

Google Reviews

5-Star Reviews

Nexus 21

10-Years for Mechanical Life

BBB Better Business Bureau

A+ Rating

Houzz

2022 Best of Houzz Design 7 Years in a Row

Thumbs Up Icon

Proven TV-Lift Cabinets 20+ Years

Why Cabinet Tronix outdoor Ipe cabinets are superior and possibly priced differently to other products in the marketplace

After 20 years in business, Cabinet Tronix has combined all successes, needed changes and clients’ feedback into the current designs, construction methods and how our customer service is conducted for the outdoor weather ready motorized TV lift cabinet lines offered. This experience has also been a main contributor to selecting the high-level parts, items and attributes which make up our very durable outdoor systems

The US made TV lift we use

Equipment included

Kiln dried premium Ipe non-reversed

Cabinet Tronix uses premium non-reversed ¾ inch Kiln dried Ipe (versus air dried) which is close to eight times harder than Teak and has a fire rating akin to that of concrete and steel and is ultra longlasting. It also naturally repels bugs, rot, mold and…

Outdoor rated Power bar surge protector

As weather and climate change from highs to low and humid to dry it is important that a outdoor rated power bar be used in these outdoor TV lift cabinet systems.

Durable custom fabricated Aluminum power coated top

Cabinet Tronix high quality manufactured aluminum tops are fabricated by a company with 85 years-experience and powder coating is done by a separate company which has been in business for over 30 years!

Professional commercial grade weather seal stripping is also pre-installed.

Two interior electronic mounting walls

Cabinet Tronix uses premium non-reversed ¾ inch Kiln dried Ipe (versus air dried) which is close to eight times harder than Teak and has a fire rating akin to that of concrete and steel and is ultra…

Removable heavy duty Ipe sealed access door

An IPE small back access door which seals and attaches with stainless steel bolts helps with easy access into cabinet lift cavity area.

US made TV lift system with 10 year warranty and stainless steel screws

For 14 years, Cabinet Tronix has worked with and purchased the installed US made TV lift systems from Nexus 21. These TV lifts…

Custom Specifications

To fit most 55 inch flat screens

  • Exterior dimensions: 62.75” wide, 38.25” high, 24” deep
  • Max TV dimensions: 52.5” wide, 32.5” high, 4” deep

To fit most 65 inch flat screens

  • Exterior dimensions: 70.25” wide, 40.75” high, 24” deep
  • Max TV dimensions: 60” wide, 35” high, 4” deep

Max TV weights for the different TV lifts that fit into both furniture sizes

  • Included Standard lift max weight of TV: 70 pounds
  • Optional B size upgraded dual lift system (360 swivel not available) max weight of TV: 160 pounds
  • Optional C size upgraded larger lift (minus 2 inches off of max height) max weight of TV: 100 pounds
  • If you are looking for a TV that is over 100 pounds with the optional swivel, we will need to build a custom furniture size with the upgraded Supersized lift system.

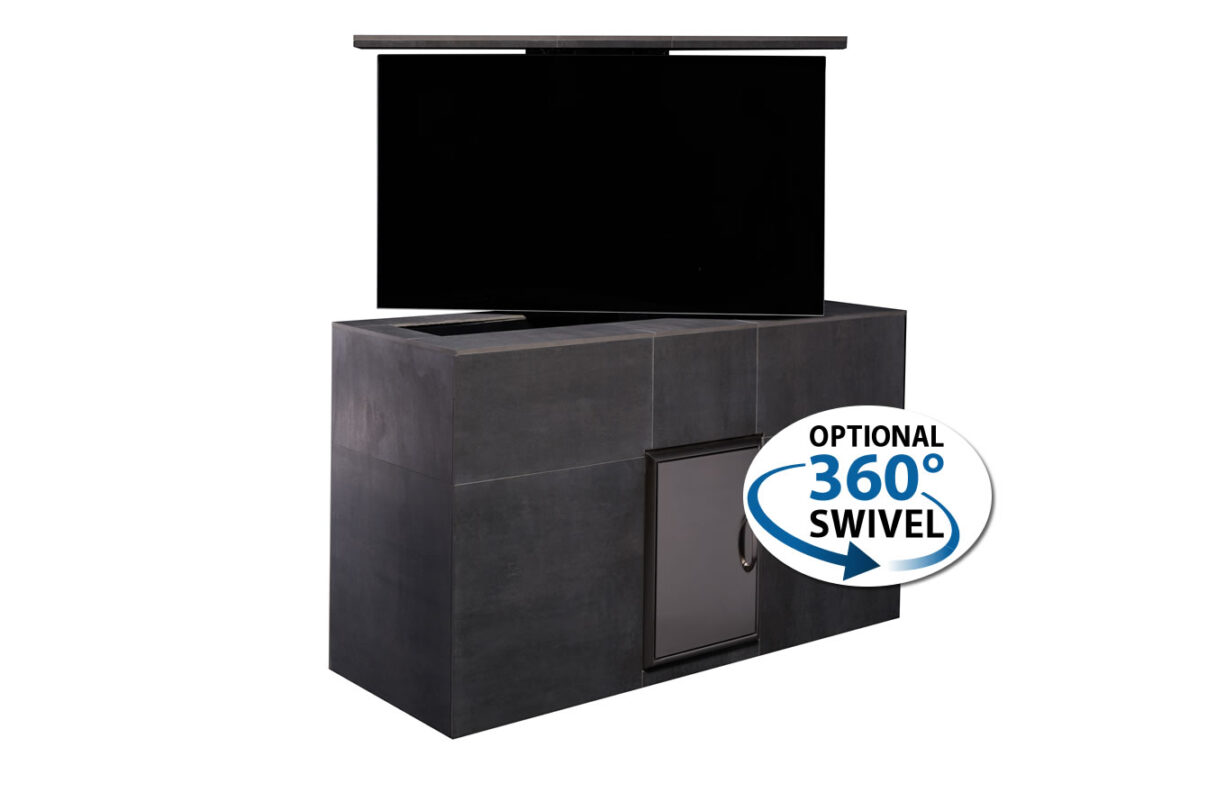

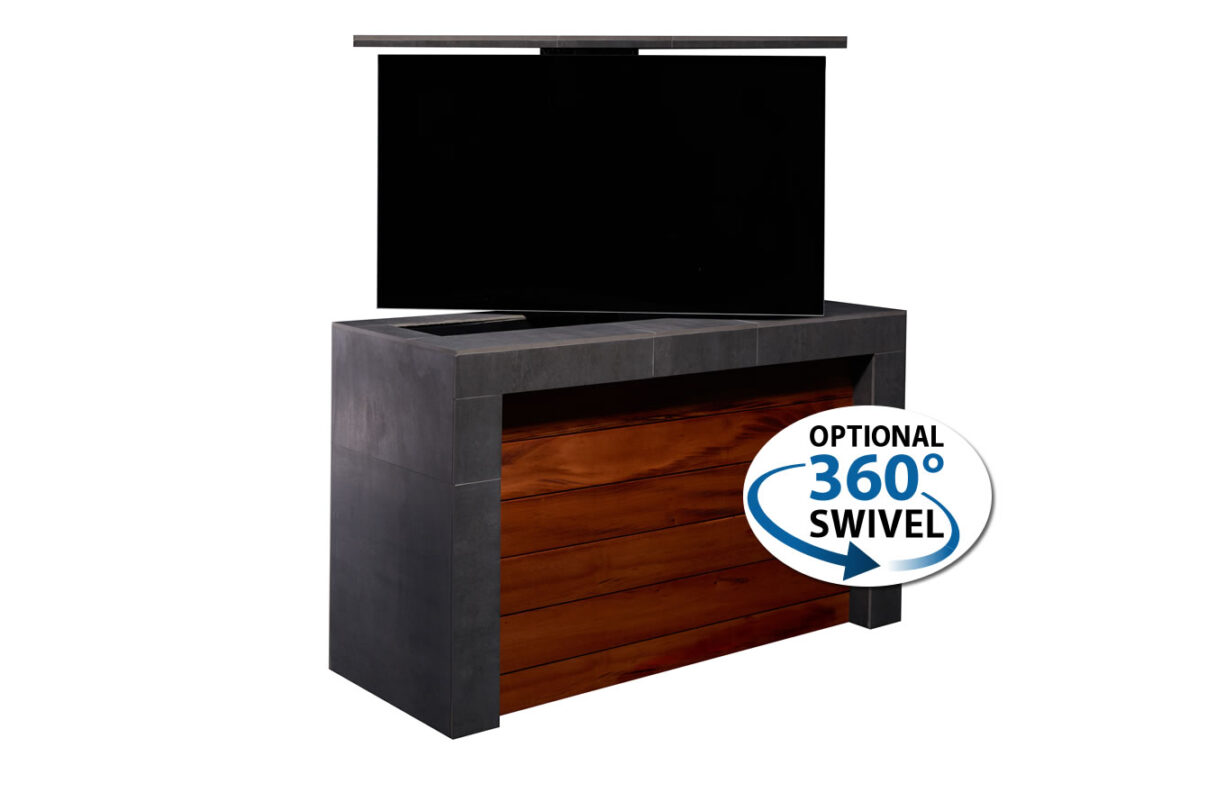

360 Degree Manual Swivel

The 360-degree manual swivel can be a game changer. If the swivel is added, the TV and sound bar can be rotated for viewing from various places in your outdoor living area. The swivel can also help with sun glare. The swivel has a safety feature that restricts the TV from being lowered unless it is in the original position.

Price of the swivel is based on the size of TV and/or configuration that is being used. Call or email in for details. If simply using a 55inch TV under most circumstances the price is $675.

outdoor tv lift cabinet swivel

Sound Bar Bracket

The sound bar bracket and/or added space allows for sound to travel up and down with the TV.

Price of the sound bar shelf, plate or space will depend on the size of TV and/ or configuration.

If using a 55 inch TV under most circumstances the shelf is $150.

outside hidden sound bar swivel tv lift cabinet

Heavy-Duty, Stainless-steel Locking Caster Wheels

Cabinet Tronix uses high-end stainless-steel swivel caster wheel sets which not only make the entire unit more stable, but they keep the wheels, locks and bearings from rusting or breaking. In addition, the cabinet is much easier to move around, and the sturdy wheel locks can hold more weight than the cheaper wheels.



Cabinet Tronix outdoor stainless steel heavy duty wheel sets

Weather Covers Available

Custom made weather covers available. A perfect fit to protect your investment during bad weather.

all weather cabinet cover available

Warranty

Cabinet Tronix has a fantastic warranty. Please click this link to see the warranty information.

Customization

Looking for something personalized? Cabinet-Tronix can create a custom outdoor TV lift cabinet system to fit your size and styling preferences. Give us a call at 1.619.422.2784 and a design consultant will advise you after learning about your needs, for example:

  • Where the furniture will be placed
  • Whaesigns appeal to you
  • The maximum space available for a cabinet
  • The TV size you have or will purchase
  • Woods and finishes in the space
  • Whether options like a 360-degree swivel are needed
  • Where the finished piece will be delivered

Custom Specifications & Pricing

To fit most 55 inch flat screens

  • Exterior dimensions: 62.75” wide, 38.25” high, 24” deep
  • Max TV dimensions: 52.5” wide, 32.5” high, 4” deep

To fit most 65 inch flat screens

  • Exterior dimensions: 70.25” wide, 40.75” high, 24” deep
  • Max TV dimensions: 60” wide, 35” high, 4” deep

Max TV weights for the different TV lifts that fit into both furniture sizes

  • Included Standard lift max weight of TV: 70 pounds
  • Optional B size upgraded dual lift system (360 swivel not available) max weight of TV: 160 pounds
  • Optional C size upgraded larger lift (minus 2 inches off of max height) max weight of TV: 100 pounds
  • If you are looking for a TV that is over 100 pounds with the optional swivel, we will need to build a custom furniture size with the upgraded Supersized lift system.
