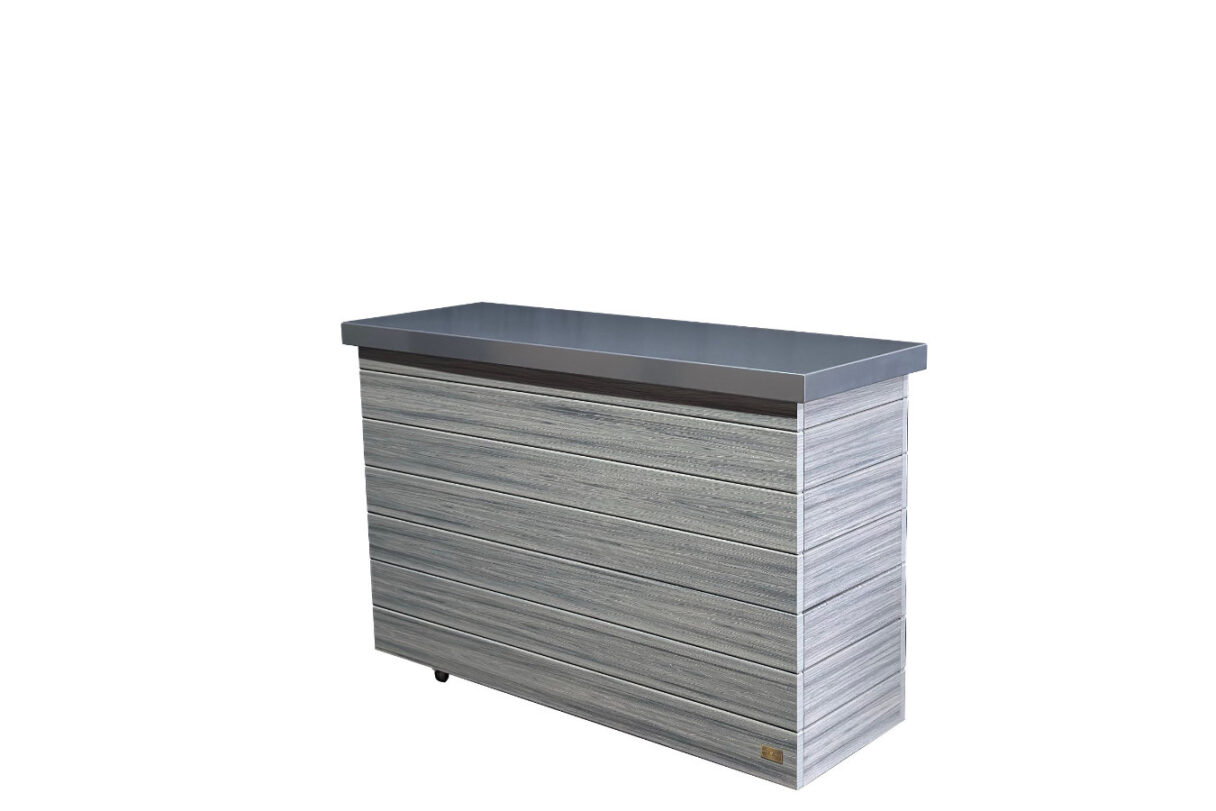

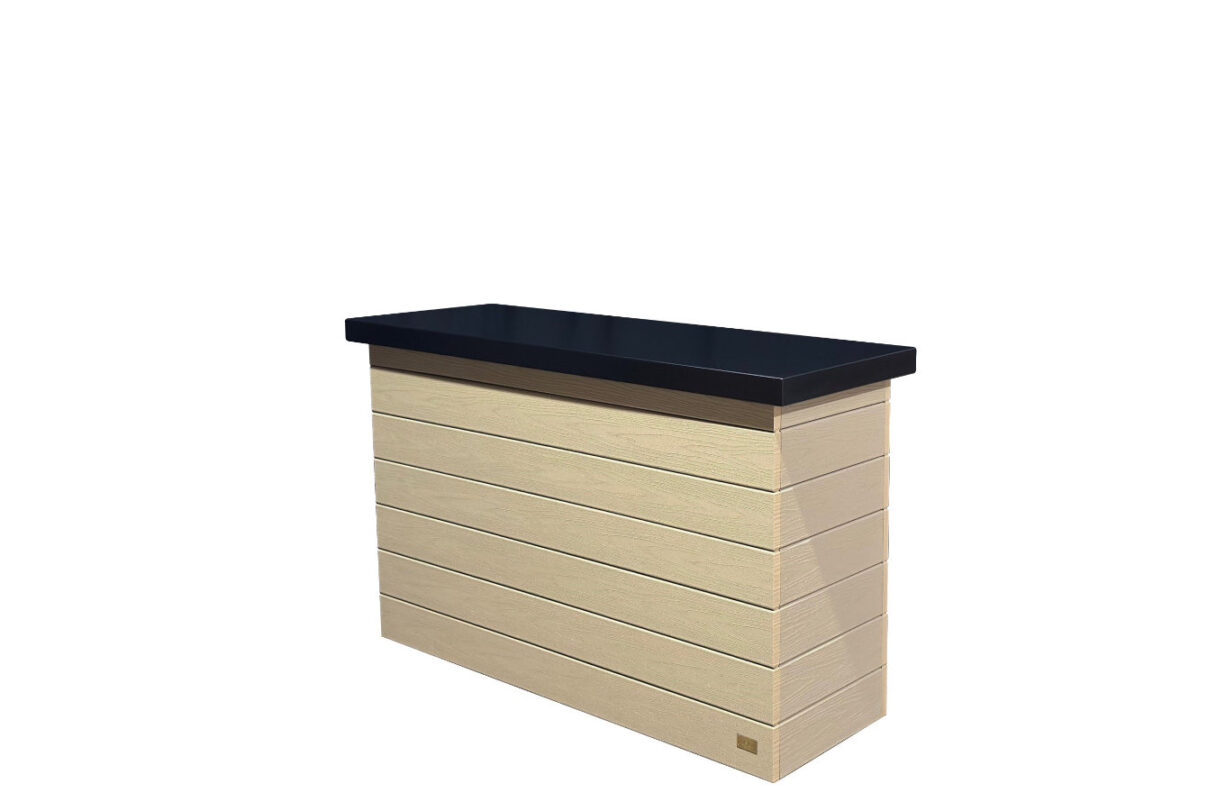

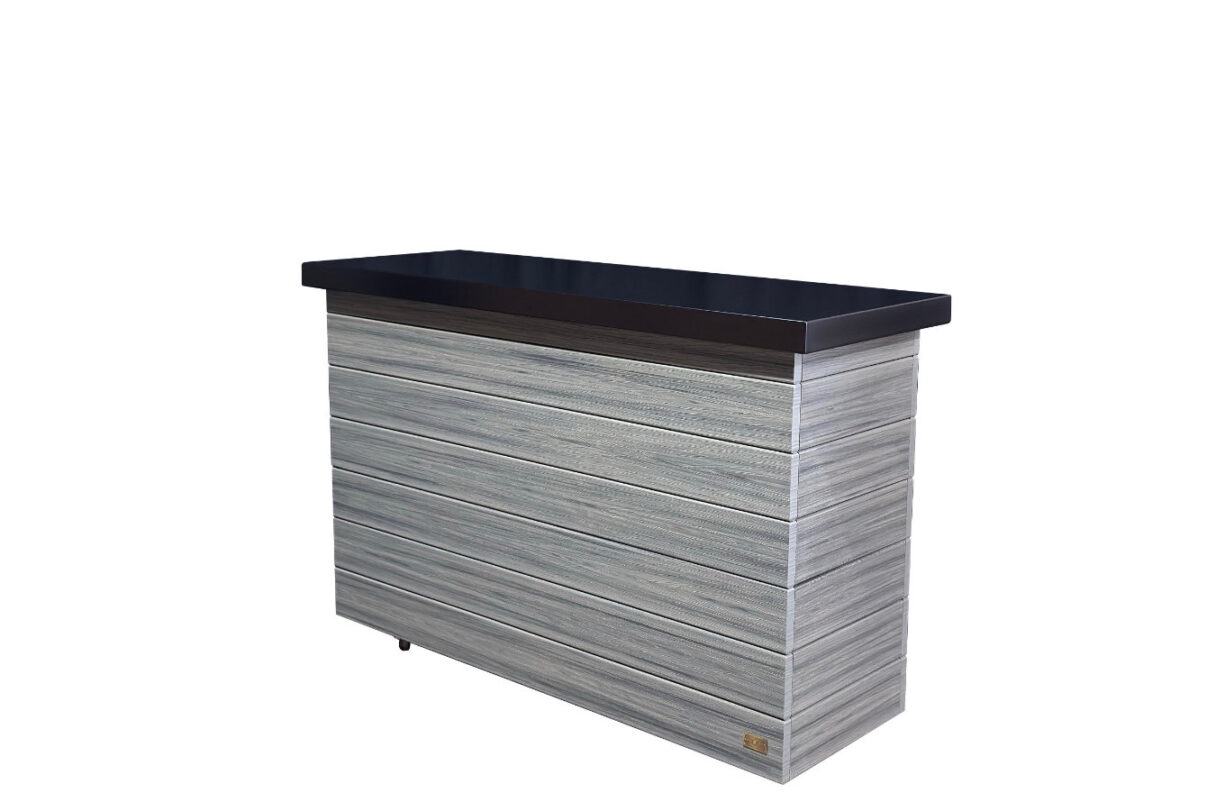

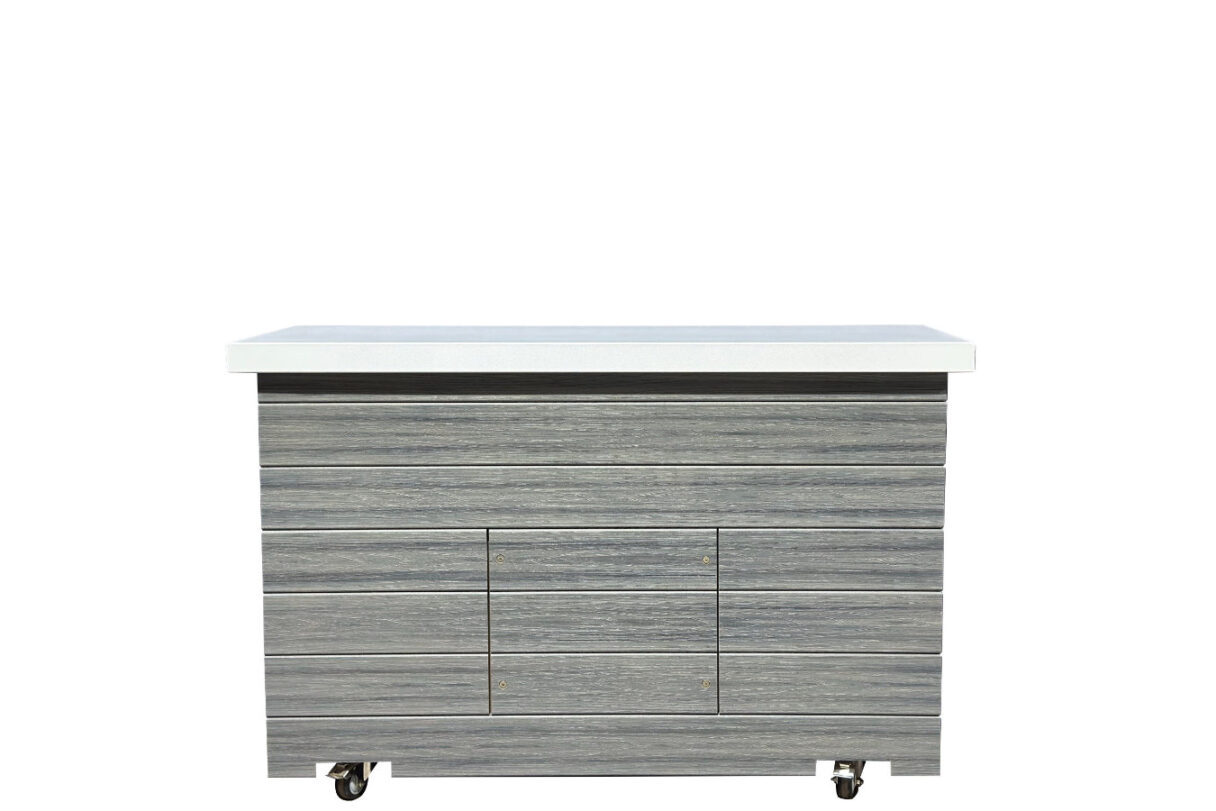

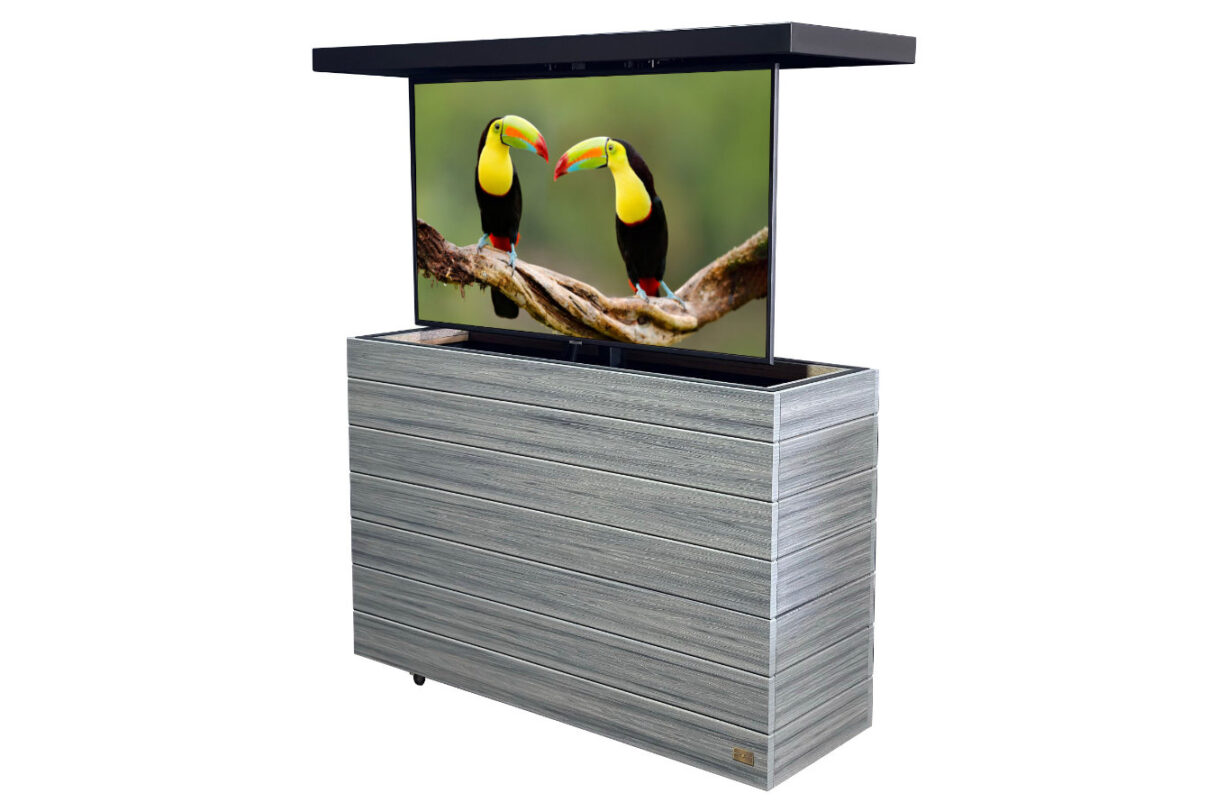

Sunset Ridge Weatherproof Outdoor TV Lift Cabinet

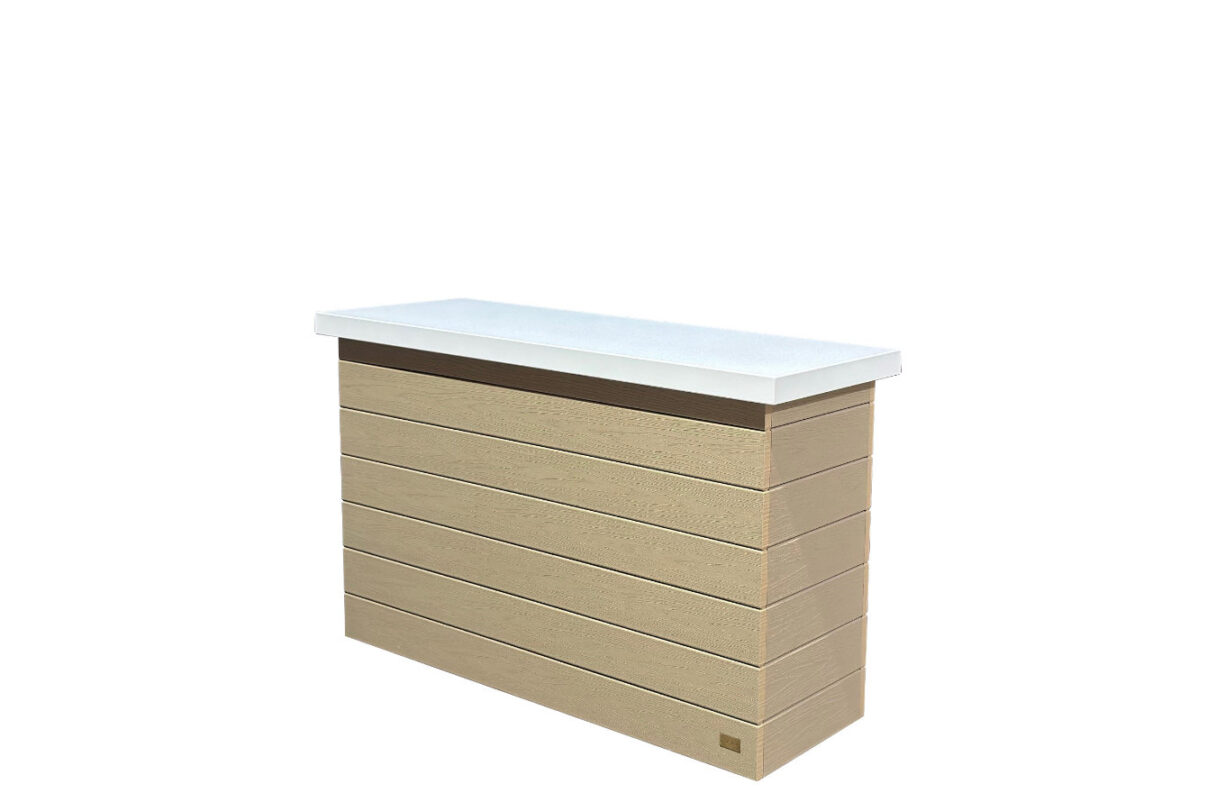

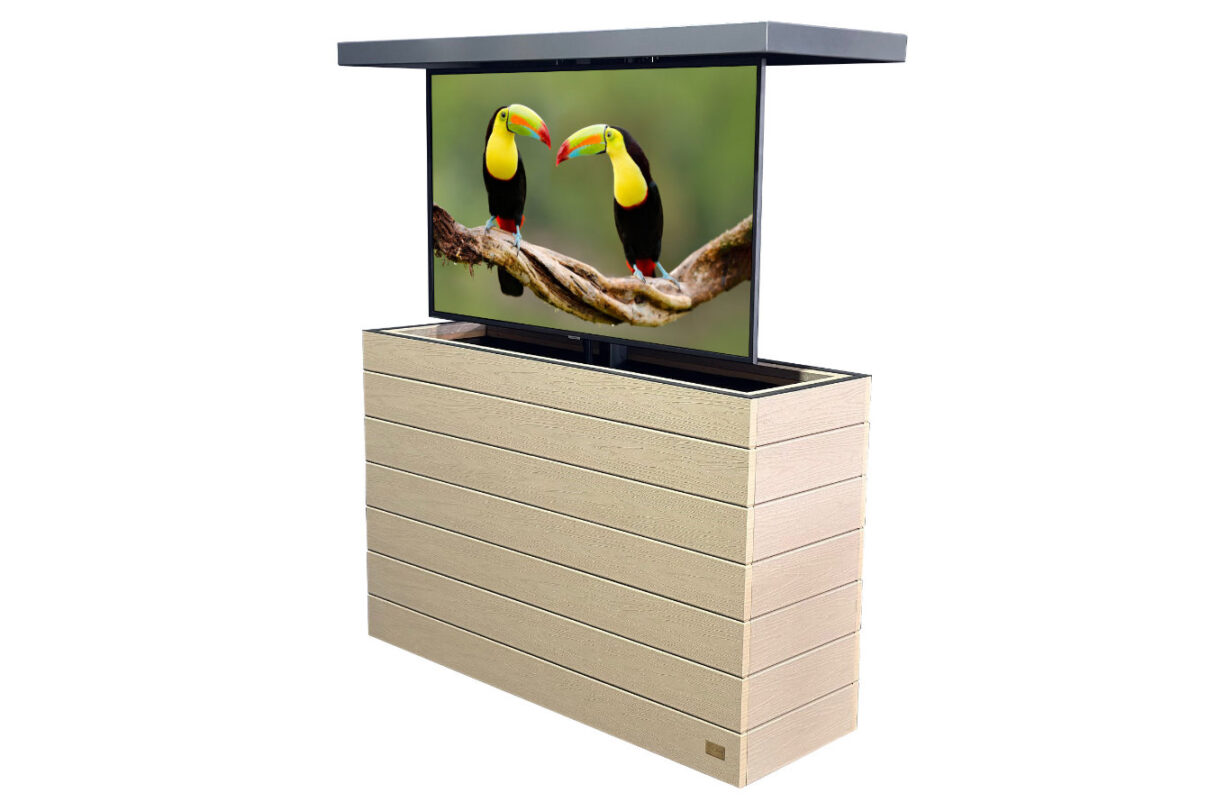

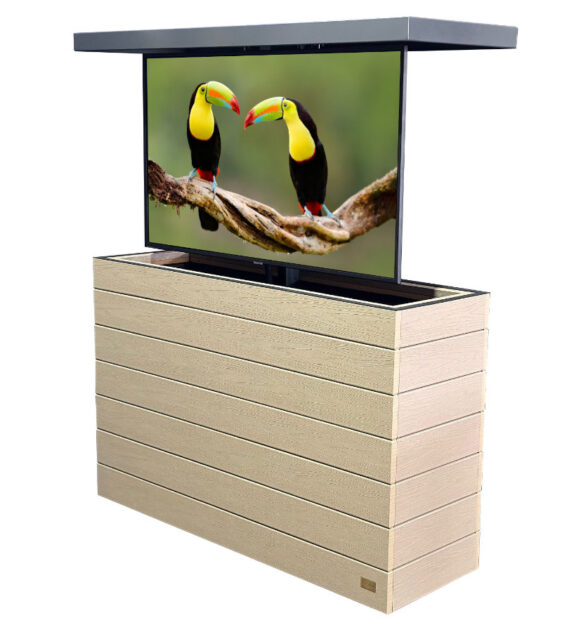

light colored outdoor hidden tv lift cabinet

Recommended on Houzz

Best of Houzz 2014
Best of Houzz 2015
Best of Houzz 2016
Best of Houzz 2017
Best of Houzz 2019
Best of Houzz 2020
Best of Houzz 2021
Best of Houzz 2022
Best of Houzz 2022
Best of Houzz 2023
Best of Houzz 2024
Best of Houzz 2025

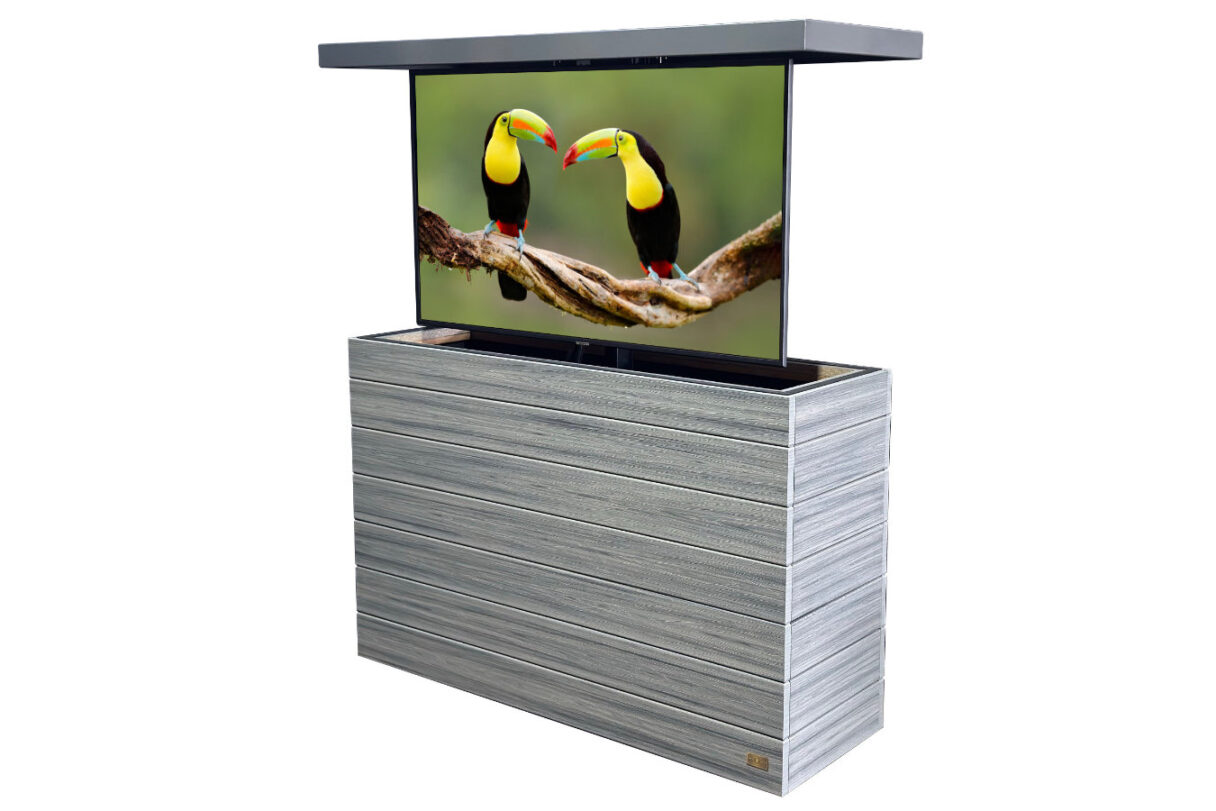

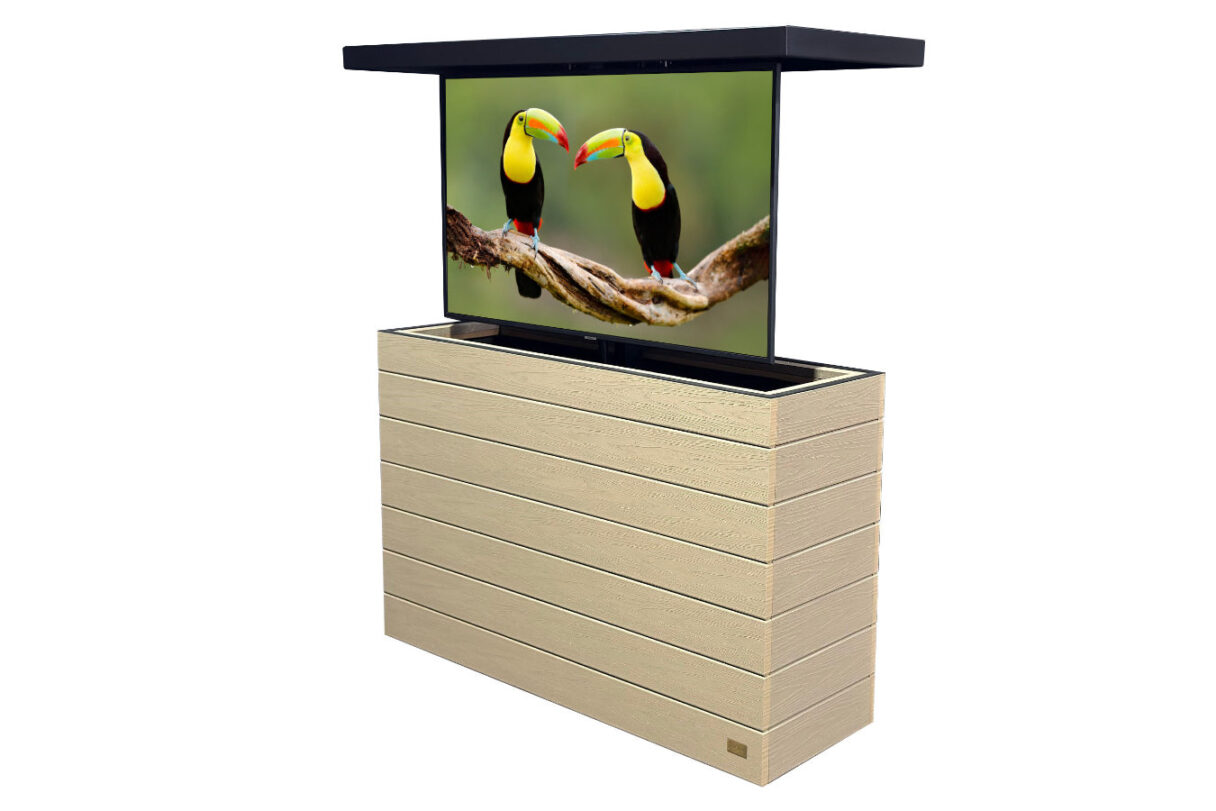

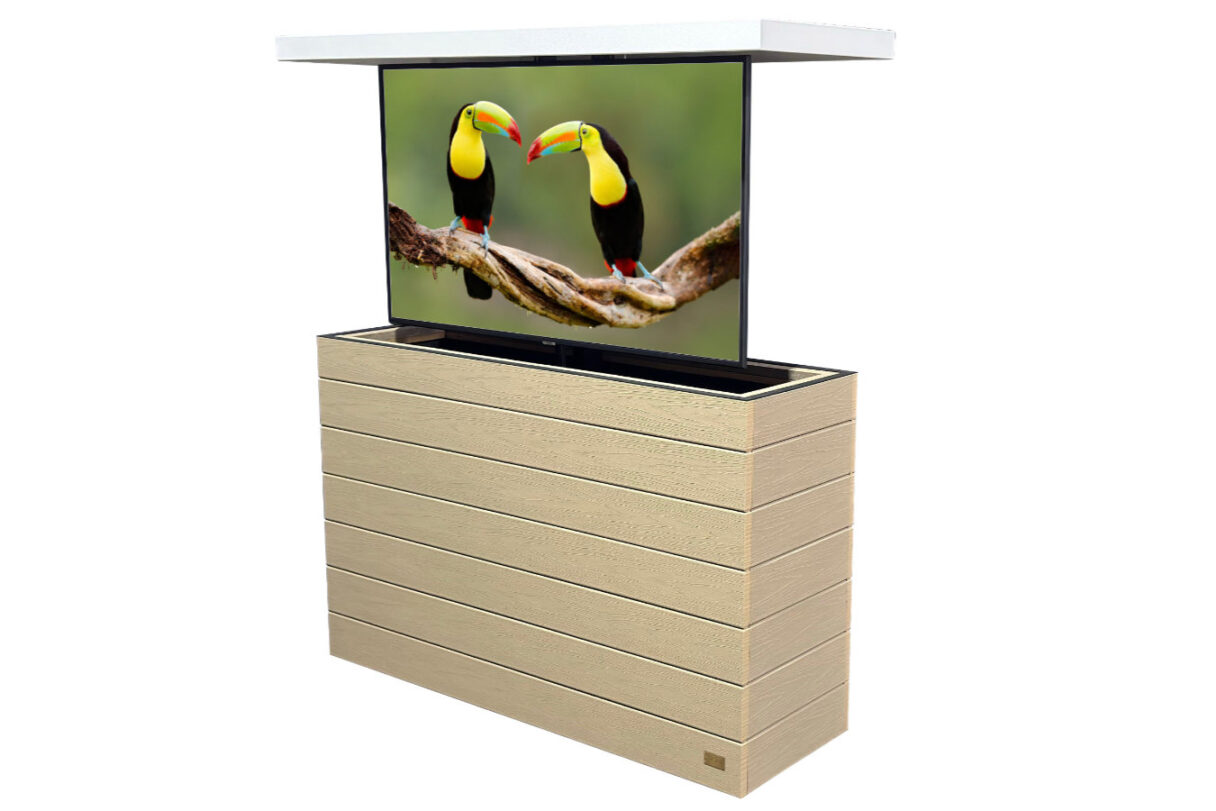

Enjoy the view every day with our Sunset Ridge weatherproof outdoor TV lift cabinet

Feel like you’re at the beach every day with this naturally beautiful design in a sandy hue

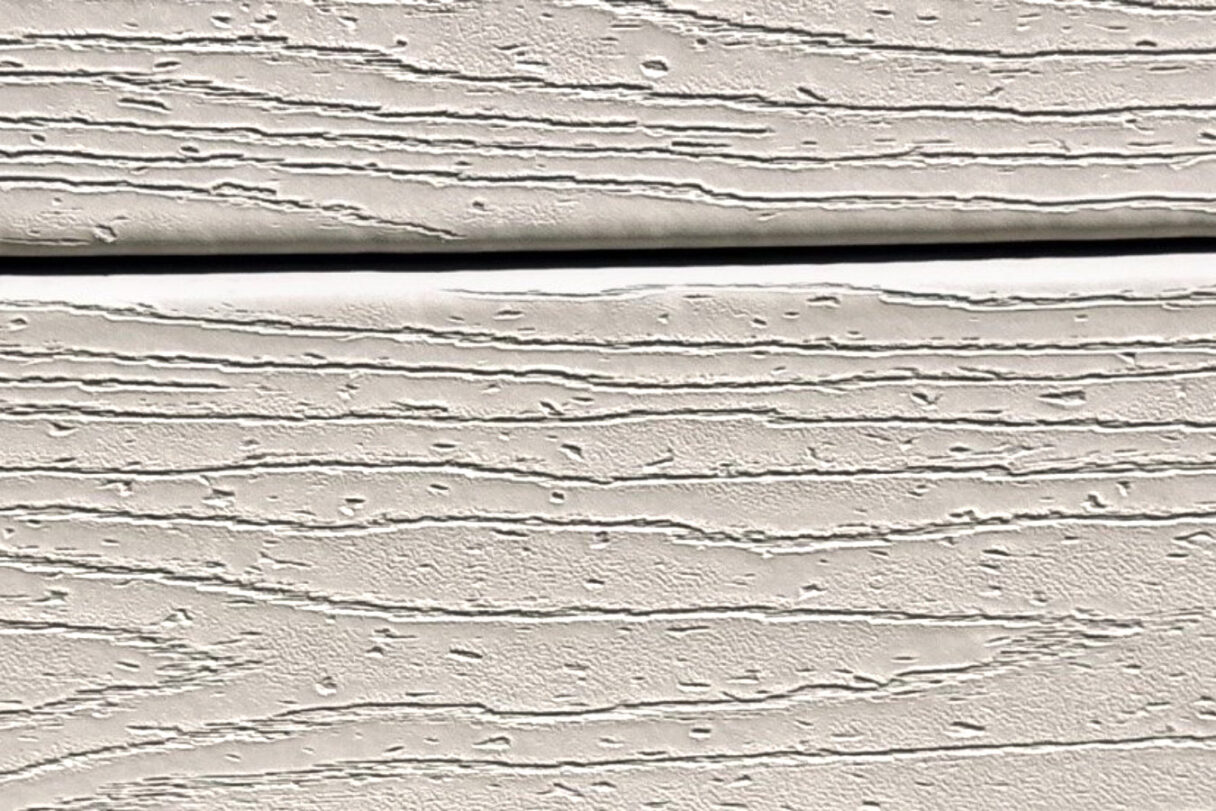

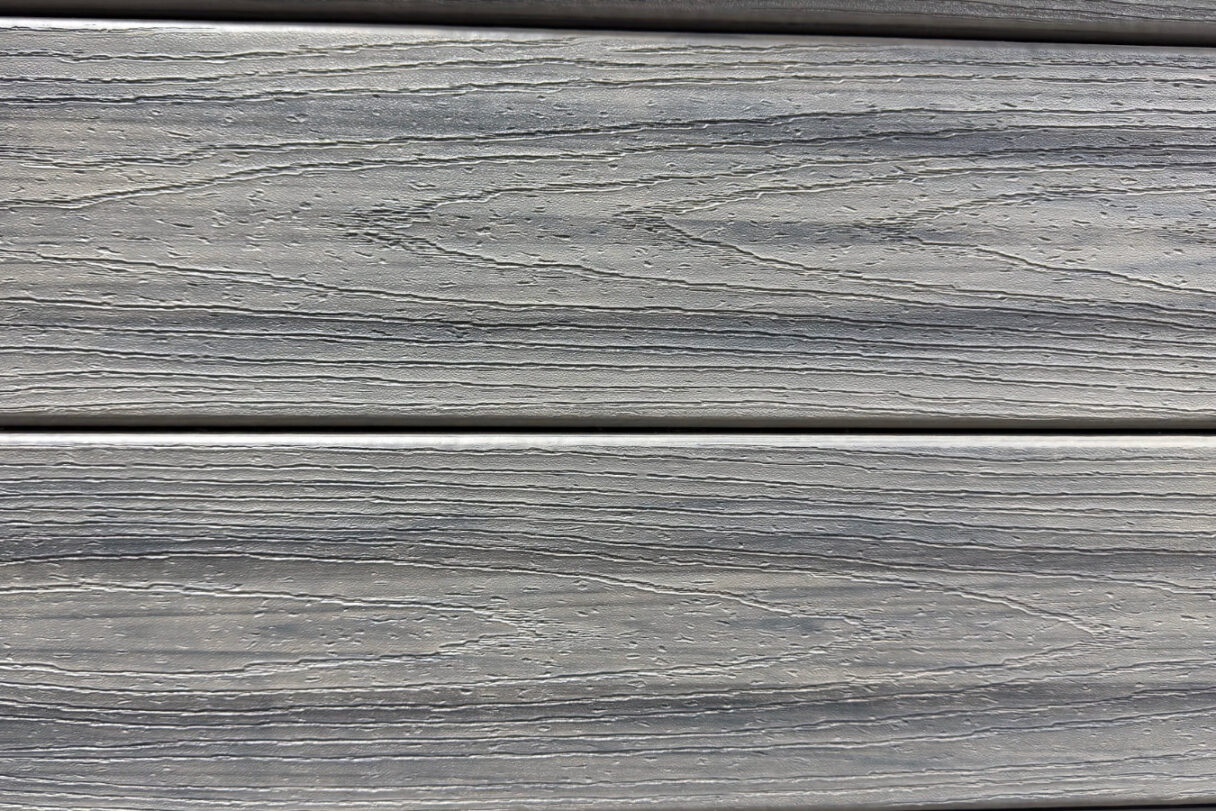

You won’t be able to resist gently running your hand across the beautifully grained finish of our Sunset Ridge weatherproof outdoor TV lift cabinet.

Inspired by Mother Nature and designed to protect your outdoor TV from the elements, this exclusive design is painstakingly crafted from US-made, sustainable Trex composite.

This unique material is created to thrive outdoors. Hardy and durable, it precisely engineered to retain a pristine aesthetic. It won’t warp, fade or rot and is resistant to scuff marks and scratches. The rich, light taupe color is the personification of casual, easy-going outdoor living while the ultra-realistic natural grain pattern combines the aesthetic appeal of wood with the longevity and hardiness of composite.

Low maintenance and easy to clean, the cabinet body will retain its showroom quality appearance no matter the climate. The clean, modern design means your TV and your outdoor space remain the focal point, while also giving you endless location options. Place it on your deck, by the pool, on the rooftop, in your outdoor kitchen, or by the hot tub – wherever you want to relax, switch off, and power up your outdoor TV.

Of course, we’ve gone all out with precision attention to detail and the finest craftsmanship. This unit looks sublime from any angle, so whether you have guests milling around or just need a different view, you can be assured your Sunset Ridge weatherproof outdoor TV lift cabinet will look like a natural fit. With optional stainless-steel castors, you also have the freedom to relocate to another area of your property. Add a 360-degree manual swivel for customizable viewing or choose to include a soundbar shelf for stadium-quality audio during life’s big moments.

From the Super Bowl to sunset drinks, our Sunset Rudge outdoor TV lift cabinet will safeguard your electronics and provide hours of open air enjoyment.

  • Turn any TV into an outdoor TV with our safe, secure and fully weatherproof cabinetry
  • Various sizes and accommodate your existing 43”, 50”, 55”, 65”, and 75” TV’s
  • arrows up to line solid
    Exclusive design comes pre-installed with leading US-made telescoping TV lift
  • 10-year mechanical parts warranty included as standard
  • Optional sound bar shelf and TV lift swivel
  • tire

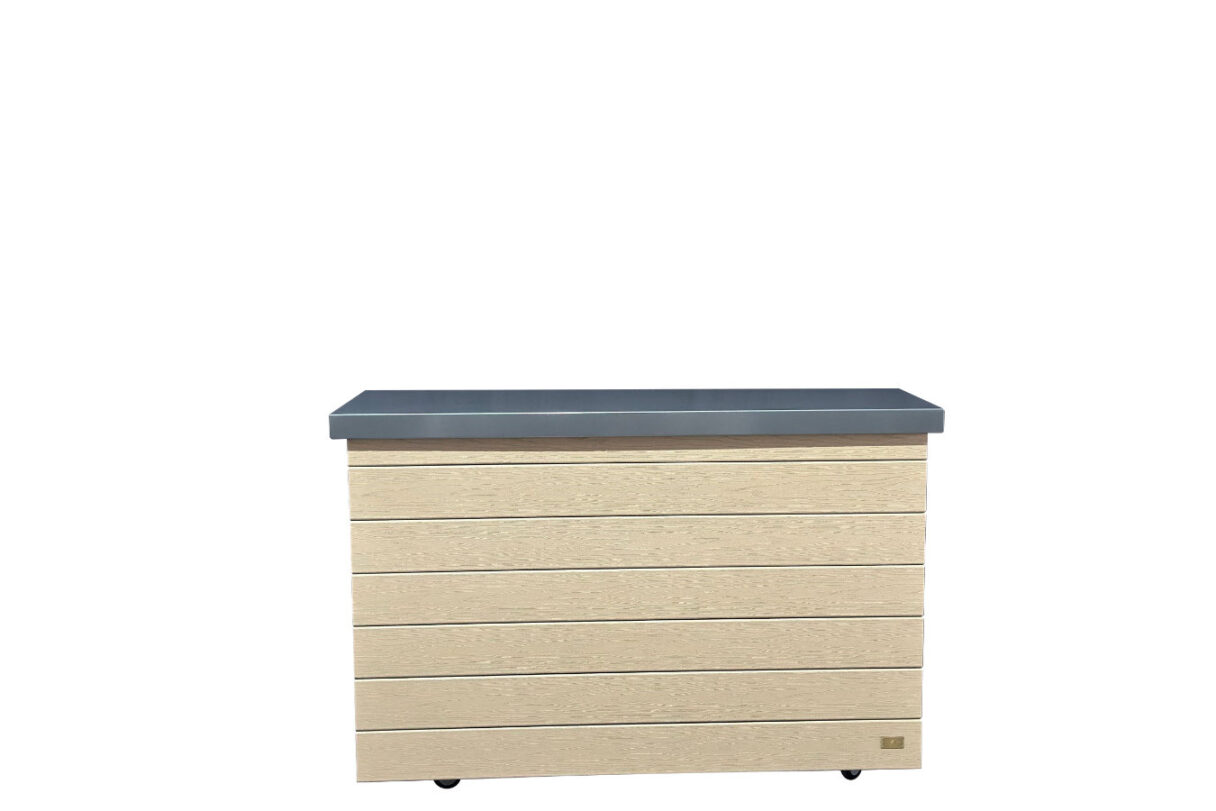

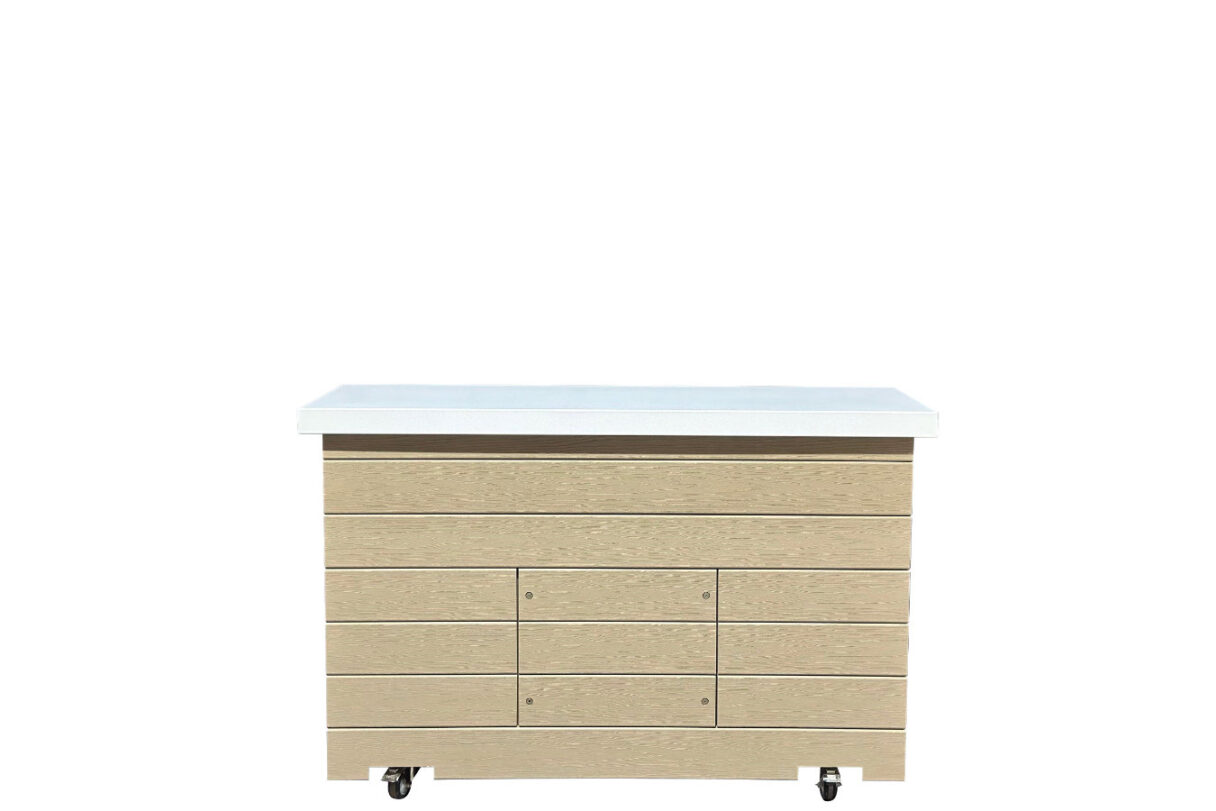

    Plan to move your cabinet? Add lockable stainless-steel castors
  • Crafted from sustainable, US-made Trex outdoor rated materials

Pricing starts at $6,950

See Pricing Tab Below

Customer Reviews

For immediate assistance call 619.422.2784

Hidden TV Cabinet Leader for 20+ Years

Google Reviews

5-Star Reviews

Nexus 21

10-Years for Mechanical Life

BBB Better Business Bureau

A+ Rating

Houzz

2022 Best of Houzz Design 7 Years in a Row

Thumbs Up Icon

Proven TV-Lift Cabinets 20+ Years

Attention in every last detail

All of our TV lift cabinets are precisely engineered from premium materials, built to order by master craftsmen, and finished to our exacting standards.

outdoor rated power bar for tv lift cabinet

Outdoor-rated Power Bar Surge Protector

To protect the interior electronics as weather changes from high to low and humid to dry, your cabinet comes pre-installed with a power bar surge protector with the highest outdoor rating.

powder coated aluminum top

Powder-coated Aluminum Top

Cabinet-Tronix high quality aluminum tops are fabricated by a company with 85 years of experience and powder coating has been applied by craftsmen in business for over 30 years. Select from white, flat black or gray when you complete your purchase.

US-made Telescoping TV Lift System

A Nexus 21 US-made telescoping lift suited to the TV size, weight, and how the furniture is being used will be pre-installed on your TV lift cabinet. The Nexus system has proven itself over 14 years and thousands of units and comes with a 10-year warranty. A durable universal TV mount is included with the TV lift system.

rf remote

Choice of TV Lift Remote Platforms

A durable hand-held up and down RF remote control will be pre-installed in your cabinet. If you would prefer to switch out and integrate with an infrared, contact closure or IP remote platform, we can do easily do that.

repeater kit

Infrared Repeater

Your TV lift cabinet system will arrive pre-installed with an infrared repeater system so that you can use your cable box remote without line of site. There will be no external eye on the cabinet.

Universal TV Mount

A heavy-duty TV mount is included with every TV lift system. Part of the TV mount will be pre-installed on the lift, the other part will be packaged, ready for installation on your TV.

Easy Height Adjuster

After setting the TV into a position you like, plug in the height adjuster nub and the lift will repeat that position every time. If you need to change your TV size or desired position in the future, resetting is as easy as 1, 2, 3.

International Power Packages

Appropriate controllers and power cords for your country are available. If you are installing your TV lift cabinet system in a country using 220V, 230V, or 240V current, just let us know and we will include the controller and power cord to fit your power source.

HDMI Cables with Web Wrap

2 pre-installed premium grade HDMI cables with a cable web wrap are included with each TV lift cabinet system.

Naturale Specifications

Different size outdoor furniture systems fit different size TV’s.

To fit most 43” TVs

  • Single post petite lift system used
  • Exterior dimensions: 51” wide, 37” high, 22” deep
  • Commercial grade stainless steel caster wheels with back locks
  • Max TV dimensions: 42” wide, 23” high, 4” deep
  • Upgrade to 360-degree swivel
  • Upgrade to stainless steel wheels
  • Max TV weight and/or if with sound bar 70 pounds

To fit most 55” TVs

  • Medium Post single lift system used
  • Exterior dimensions: 62” wide, 41.5” high, 22” deep
  • Commercial grade stainless steel caster wheels with back locks
  • Max TV dimensions: 50” wide, 29” high, 4” deep
  • Up to a 3” sound bar
  • Upgrade to 360-degree swivel
  • Upgrade to sound bar shelf
  • Upgrade to heavy duty stainless steel wheels with back locks $150
  • Max TV weight and/or if with sound bar 70 pounds

To fit many 65” TVs

  • Exterior dimensions: 72” wide, 44.5” high, 22” deep
  • Commercial grade stainless steel caster wheels with back locks
  • Max TV dimensions: 59.5” wide, 34” high, 4” deep
  • Single post lift system
  • Max TV weight 55 pounds ** This will not work with heavier TV’s such as outdoor rated TV’s **
  • PLEASE NOTE: A sound bar shelf or space will not fit in this size of cabinet.
  • Upgrade to 360 manual swivel with electronic safety feature
  • Upgrade to heavy duty stainless steel wheels with back locks

To fit most 65” TVs

(optional swivel can be added however will not fit sound bar)

  • Dual Post lift system or upgrade to 4 column post with swivel for an additional $1,645
  • Exterior dimensions: 72” wide, 44.5” high, OR 48.5 high if adding swivel, 22” deep or 24 deep if adding swivel
  • Commercial grade stainless steel caster wheels with back locks
  • Max TV dimensions: 59.5” wide, 34” high, 4” deep
  • Upgrade to 360 swivel with 4 column lift and extra labor: $1,645. VERY IMPORTANT… if adding swivel cabinet Dimensions are 72 wide, 24 deep, 48.5 high
  • Max TV weight 120 pounds
  • Upgrade to heavy duty stainless steel wheels with back locks
  • PLEASE NOTE: A sound bar shelf or space will not fit in this size of cabinet.

To fit most 65” TV with ability to upgrade to Swivel & Sound Bar space

  • 4 column post lift system used
  • Exterior dimensions: 72” wide, 49” high, 23” deep
  • Max TV dimensions: 59.5” wide, 34” high, 4” deep
  • Max sound bar space: 4 high 4 deep
  • Max TV and sound bar weight together 120 pounds
  • Upgrade to 360 manual swivel with electronic safety feature
  • Upgrade to heavy duty stainless steel wheels with back locks

To fit most 75” to 77 inch TVs with Swivel

(no space for sound bar)

  • 4 column lift system used
  • Exterior dimensions: 78” wide, 52” high, 25” deep
  • Max TV dimensions: 67.5” wide, 39.5” high, 4.5” deep
  • No sound bar fits inside this cabinet size.
  • Max TV weight 120 pounds
  • Upgrade to 360 manual swivel with electronic safety feature
  • Upgrade to heavy duty stainless steel wheels with back locks
  • PLEASE NOTE: A sound bar shelf or space will not fit in this size of cabinet. Call for more information

To fit most 85” to 86” TVs with Swivel

(no space for sound bar)

4 column lift system used

  • Exterior dimensions: 88” wide, 56” high, 27” deep
  • Max TV dimensions: 76” wide, 43.5” high, 4” deep
  • No sound bar fits inside this cabinet size.
  • Max TV weight 110 pounds
  • Upgrade to 360 manual swivel with electronic safety feature
  • Upgrade to heavy duty stainless steel wheels with back locks
  • PLEASE NOTE: A sound bar shelf or space will not fit in this size of cabinet.

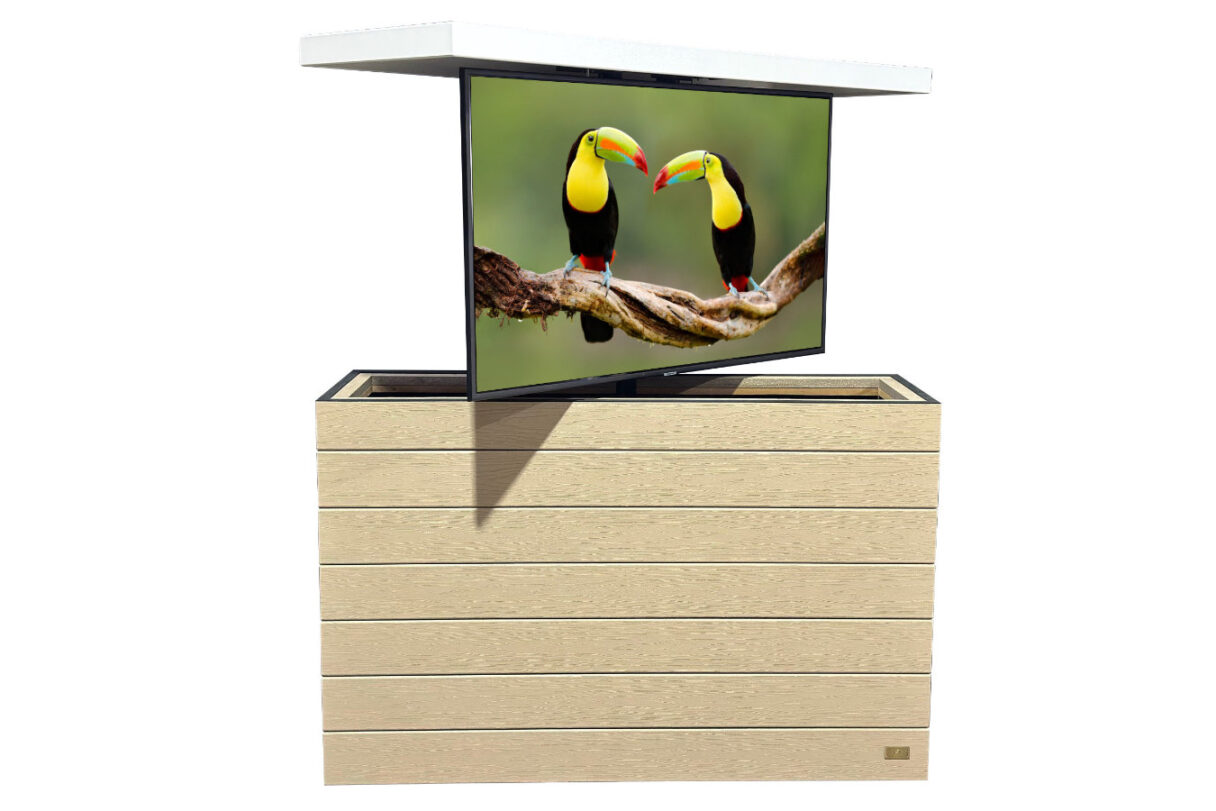

360 Degree Manual Swivel

The 360-degree manual swivel can be a game changer. If the swivel is added, the TV and sound bar can be rotated for viewing from various places in your outdoor living area. The swivel can also help with sun glare. The swivel has a safety feature that restricts the TV from being lowered unless it is in the original position.

Price of the swivel is based on the size of TV and/or configuration that is being used. Call or email in for details. If simply using a 55inch TV under most circumstances the price is $750.

outdoor tv lift cabinet swivel

Sound Bar Bracket

The sound bar bracket and/or added space allows for sound to travel up and down with the TV.

Price of the sound bar shelf, plate or space will depend on the size of TV and/ or configuration.

If using a 55 inch TV under most circumstances the shelf is $200.

outside hidden sound bar swivel tv lift cabinet

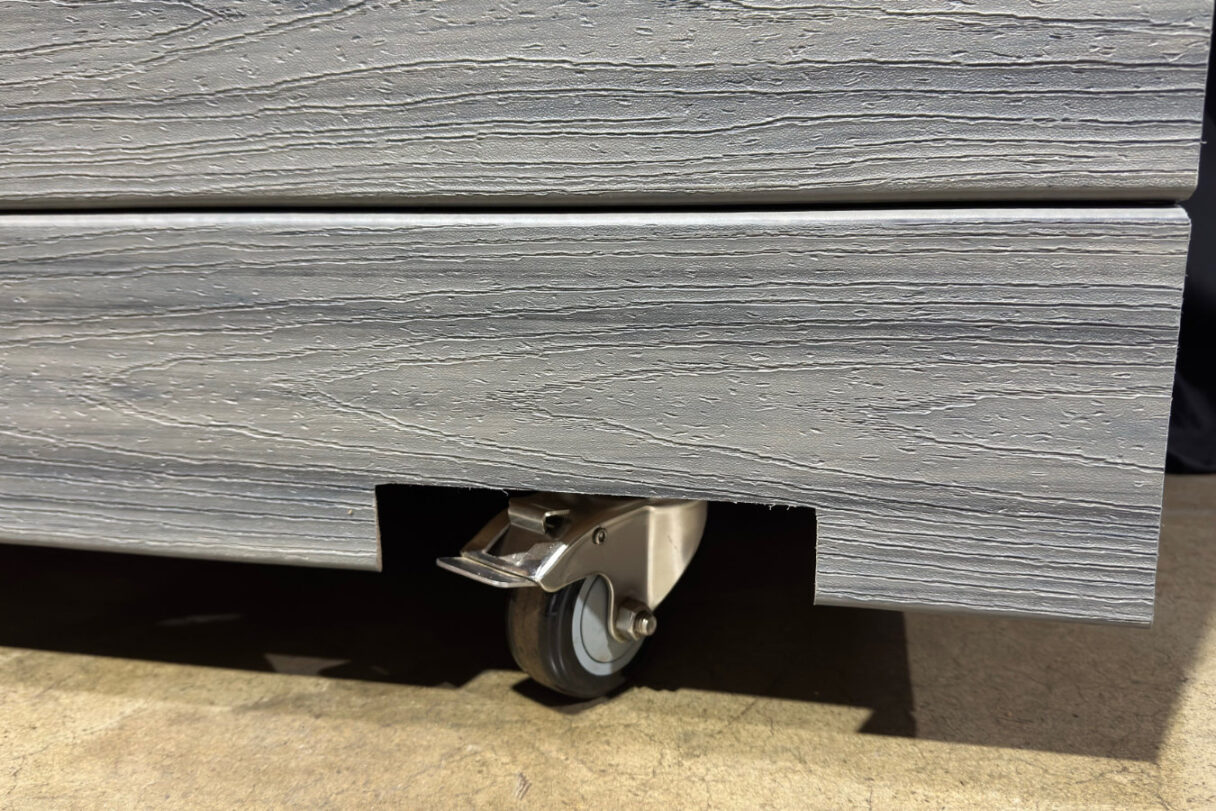

Heavy-Duty, Stainless-steel Locking Caster Wheels

Cabinet Tronix uses high-end stainless-steel swivel caster wheel sets which not only make the entire unit more stable, but they keep the wheels, locks and bearings from rusting or breaking. In addition, the cabinet is much easier to move around, and the sturdy wheel locks can hold more weight than the cheaper wheels.



Cabinet Tronix outdoor stainless steel heavy duty wheel sets

Weather Covers Available

Custom made weather covers available. A perfect fit to protect your investment during bad weather.

all weather cabinet cover available

Warranty

Cabinet Tronix has a fantastic warranty. Please click this link to see the warranty information.

Customization

All Cabinet Tronix hidden TV lift furniture systems are made to order. The size, configuration, finish, capability of TV size, options and any other special applications are based on a conversation with Cabinet Tronix representative.

Cabinet Tronix 1.619.422.2784

Sunset Ridge Pricing

Different size outdoor furniture systems fit different size TV’s.

To fit most 43” TVs with optional swivel:  $6,950

  • Single post petite lift system used
  • Exterior dimensions: 51” wide, 37” high, 22” deep
  • Max TV dimensions: 42” wide, 23” high, 4” deep
  • Upgrade to 360-degree swivel: $750
  • Upgrade to commercial grade stainless steel wheels $150
  • Max TV weight and/or if with sound bar 70 pounds

To fit most 55” TVs with optional swivel and sound bar space: $7,250

  • Single post lift system is used
  • Exterior dimensions: 62” wide, 41.5” high, 22” deep
  • Max TV dimensions: 50” wide, 28.5” high, 3.5” deep
  • Up to a 4” deep, 3” high sound bar
  • Max TV weight and/or if with sound bar 70 pounds
  • Upgrade to 360-degree swivel: $750
  • Upgrade to sound bar shelf: $150
  • Upgrade to commercial grade stainless steel wheels with back locks $150

To fit many 65” TVs with optional swivel: $8,450

  • Exterior dimensions: 72” wide, 44.5” high, 22” deep
  • Max TV dimensions: 59.5” wide, 34” high, 4” deep
  • Single post lift system is used
  • Max TV weight 55 pounds ** This will not work with heavier TV’s such as outdoor rated TV’s **
  • PLEASE NOTE: A sound bar shelf or space will not fit in this size of cabinet.
  • Upgrade to 360 manual swivel with electronic safety feature for $750
  • Upgrade to commercial grade stainless steel wheels with back locks $150

To fit most 65” TVs with optional swivel and sound bar space: $9,250

  • Dual Post commercial grade lift system is used
  • Exterior dimensions: 72” wide, 44.5” high, 23” deep
  • Max TV dimensions: 59.5” wide, 34” high OR if fitting a sound bar the max is 32.5” high, 3.5” deep
  • Max size of sound bar that can fit. Smaller sound bar fit: 2.75 high, 3.5 deep
  • Upgrade to 360 swivel $750
  • Max TV weight 120 pounds
  • Upgrade to commercial grade stainless steel wheels with back locks $150
  • PLEASE NOTE: A sound bar shelf or space will not fit in this size of cabinet.

To fit most 65” TV with ability to upgrade to Swivel & * larger * Sound Bar space: $11,950

  • Commercial grade 4 column post lift system is used
  • Exterior dimensions: 72” wide, 52.5” high, 24” deep
  • Max TV dimensions: 59.5” wide, 34” high, 4” deep
  • Max sound bar space: 5 high 4.5 deep
  • Max TV and sound bar weight together 120 pounds
  • Upgrade to 360 manual swivel with electronic safety feature for $750
  • Upgrade to commercial grade stainless steel wheels with back locks $150

To fit most 75” to 77 inch TVs: $12,250

(no space for sound bar as mentioned… call for information)

  • 4 column lift system used
  • Exterior dimensions: 78” wide, 52.5” high, 25” deep
  • Max TV dimensions: 67.5” wide, 39.5” high, 4.5” deep
  • No sound bar fits inside this cabinet size.
  • Max TV weight 120 pounds
  • Upgrade to 360 manual swivel with electronic safety feature for $750
  • Upgrade to commercial grade stainless steel wheels with back locks $225
  • PLEASE NOTE: A sound bar shelf or space will not fit in this size of cabinet. Call for more information
